DWH205DH

DEWALT® Dust Extractor for DCH263 Rotary Hammer

Dust Extractor.

Reviews

Product details

The DWH205DH is an OSHA Table 1 Compliant dust extractor for the DCH263 20V MAX* XR Brushless 1-1/8“ D-Handle SDS Plus Rotary Hammer. This dust extraction system features a powerful built in motor for increased suction and high-performance drilling. The 2-second power-off delay ensures that dust extraction continues after drill is switched off. The DWH205DH features three nozzle heads for maximum dust collection during the application. The included nozzles are tuned for up to 1“ diameter bits, all stop bits up to 1.5“ shoulder and small diameter bits up to 0.5“. This dust extractor allows for bit lengths up to 10“ in overall length for drilling applications. This allows users to install a wide range of anchors including pinch nails, rod hanging systems like drop-ins, large diameter sleeve, stud/wedge, and screw anchors. This unit includes an OSHA 1926.1153-compliant Dust Box Assembly. Equipped with a filter cleaning mechanism and a HEPA filter, it removes 99.97% of airborne particles 0.3 microns or greater.

Downloads and manuals

N603504_DWH205.pdf
PDF

Related products & accessories

DEWALT promotes safe jobsites

PERFORM & PROTECT™

The DEWALT PERFORM & PROTECT™ line of tools and accessories is YOUR FIRST LINE OF DEFENSE™ on the job. They are designed to provide a high level of one or more of the following: dust containment, control, or low vibration, without sacrificing performance.

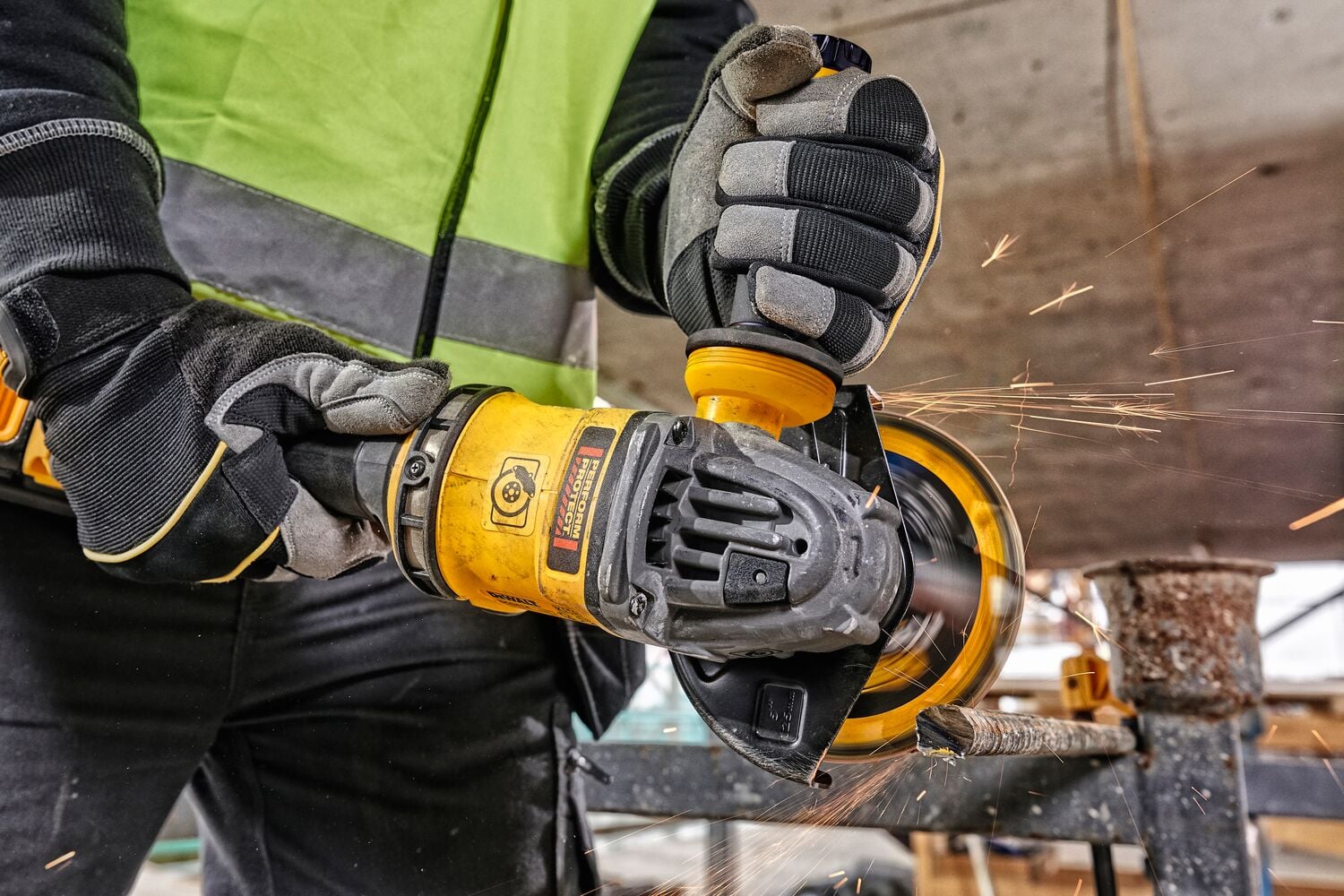

4-1/2" - 6" Side Handle Detect Small Angle Grinder with FLEXVOLT Battery cutting rebar.

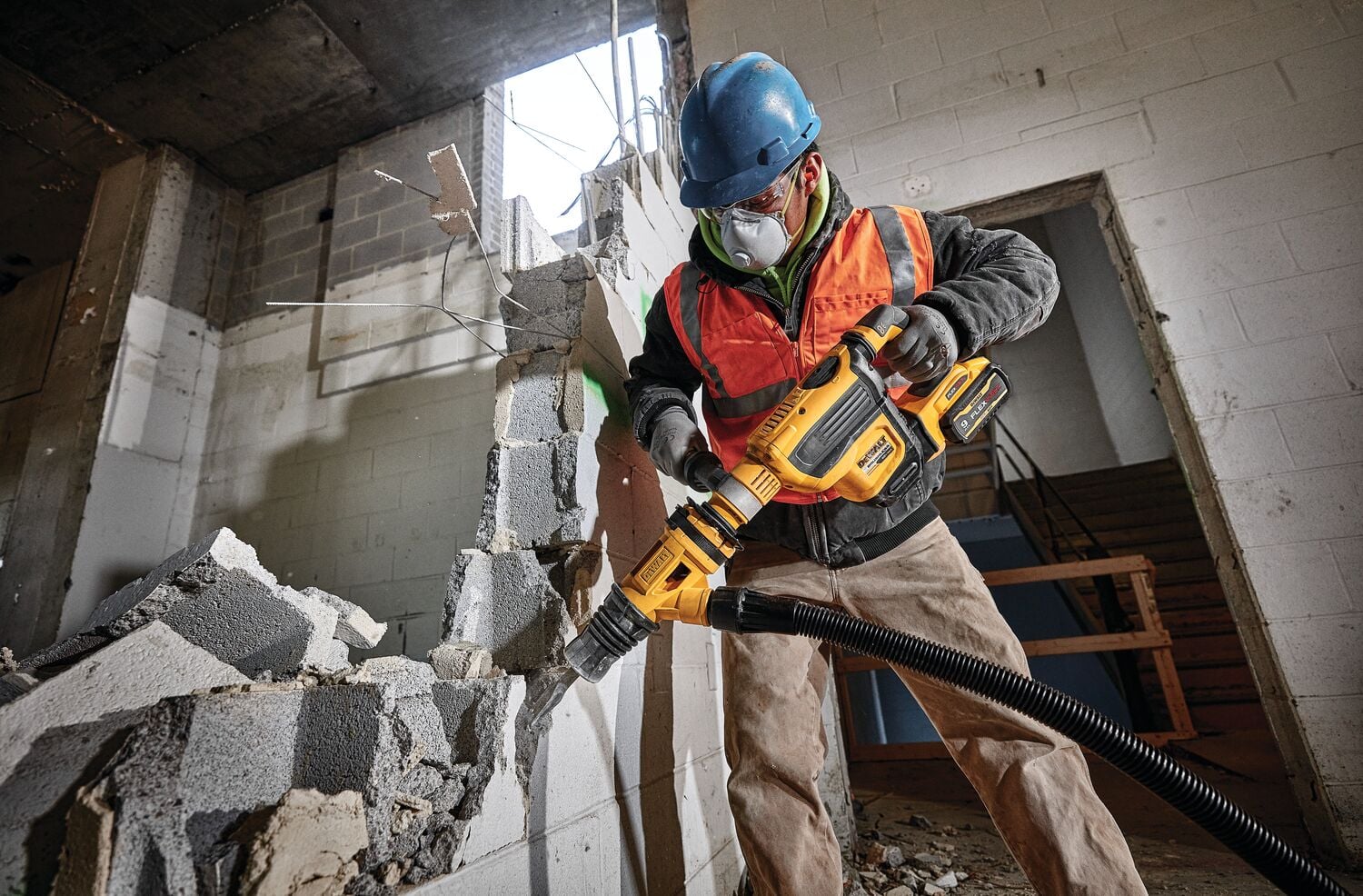

A construction worker wearing a blue hard hat and orange safety vest uses a DEWALT DCH614B cordless rotary hammer to demolish a concrete wall, with debris falling around and a vacuum hose attached to the tool.

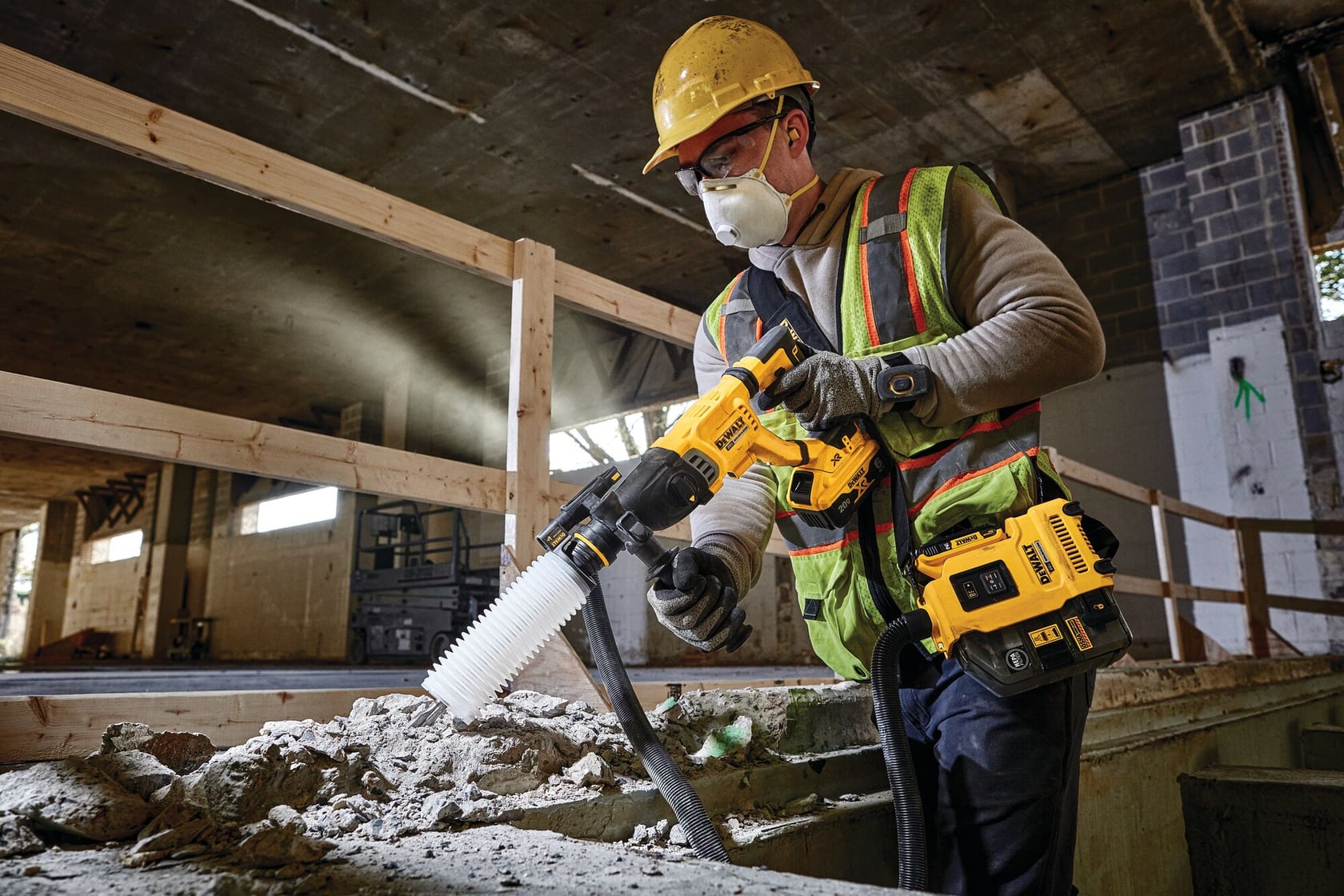

A construction worker wearing a yellow safety helmet and reflective vest operates a DEWALT cordless rotary hammer drill with a dust extraction attachment at a building site. The worker is drilling into concrete debris.

Dust containment

Offering 220+ OSHA Table 1 Compliant dust solutions within our DEWALT PERFORM & PROTECT™ line. PERFORM & PROTECT™ shrouds, extractors, and extraction accessories reduce the amount of air-borne dust exposure, increase use visibility, and cut down on tool maintenance costs.

A construction worker wearing a yellow safety helmet and reflective vest operates a DEWALT cordless rotary hammer drill with a dust extraction attachment at a building site. The worker is drilling into concrete debris.

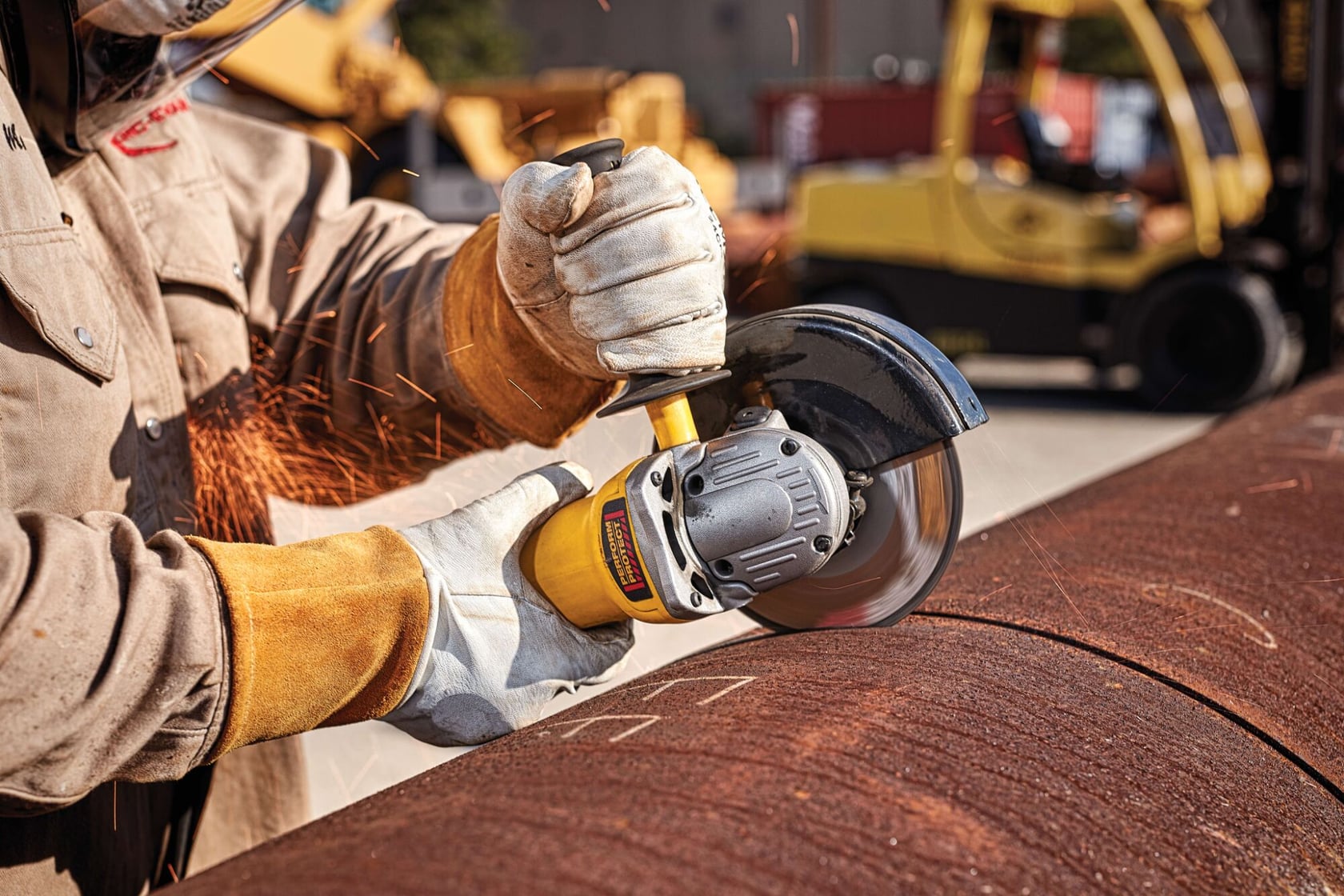

XP metal cutting wheel type 27 being used by a person.

Control

Tools can bind up in normal drilling or cutting applications, which can cause injury to the user or damage the tool. DEWALT PERFORM & PROTECT™ drills and grinders come equipped with integrated control features. The Anti-Rotation E-CLUTCH® System and Kickback Brake feature help protect the user in bind up situations.

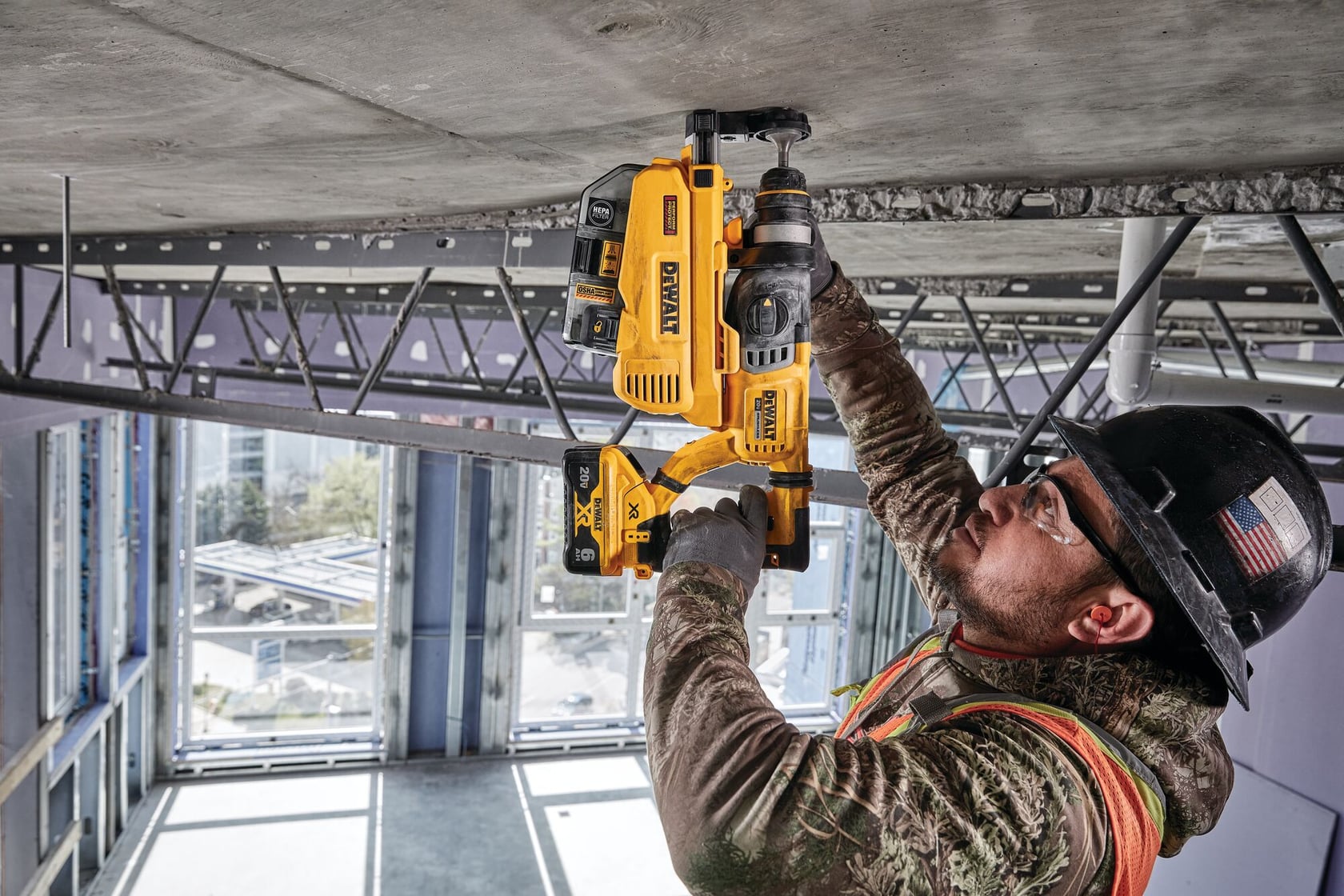

A worker in safety gear is using a yellow DEWALT rotary hammer drill with a dust extraction attachment to drill into a concrete ceiling at a construction site.

Vibration

Prolonged exposure to vibration may result in fatigue, pain numbness, increased sensitivity to cold, and decreased sensitivity to touch in fingers and hands. The DEWALT SHOCKS ACTIVE VIBRATION CONTROL® System reduces vibration felt at the handles. ‡

A worker in safety gear is using a yellow DEWALT rotary hammer drill with a dust extraction attachment to drill into a concrete ceiling at a construction site.

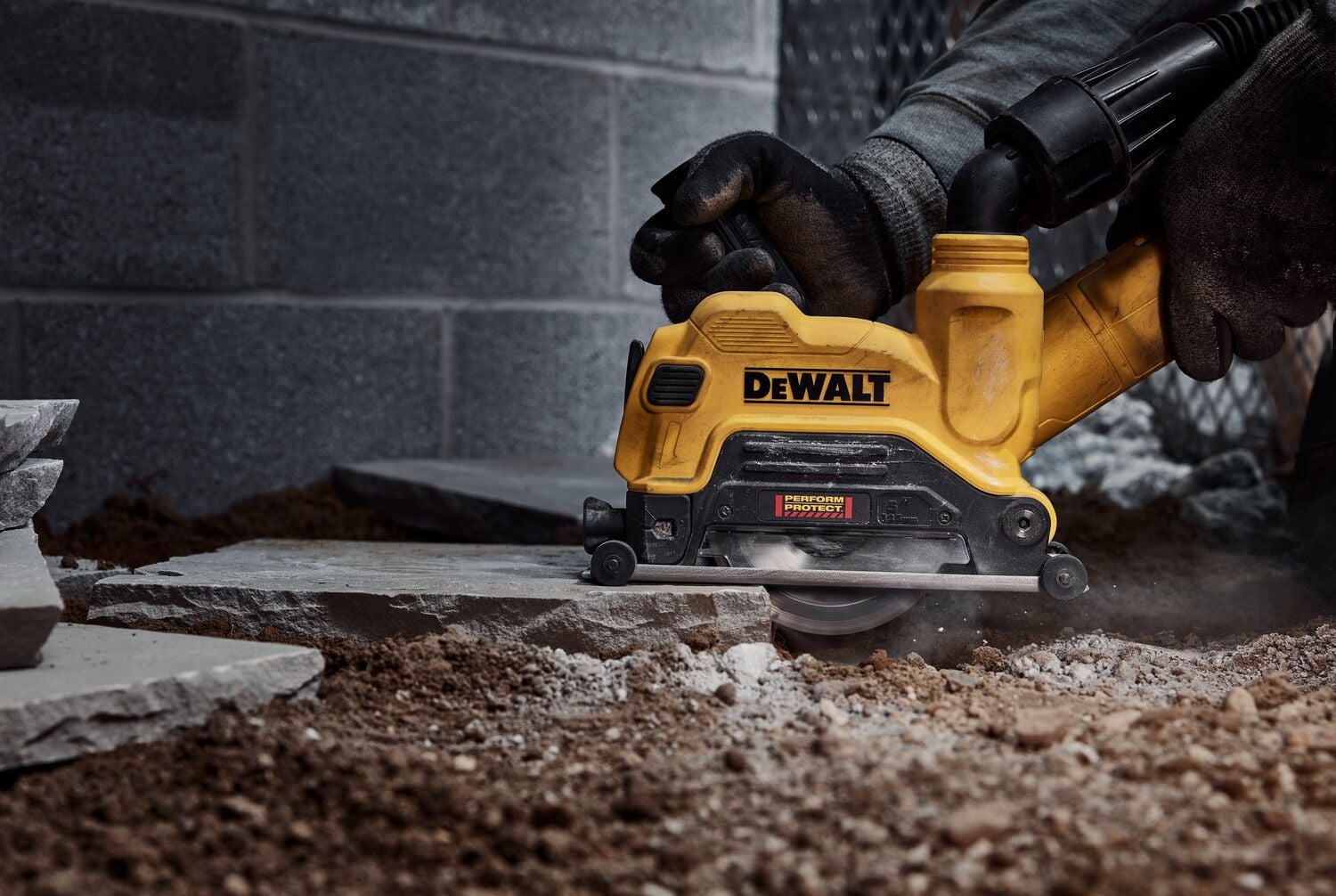

DEWALT ELITE SERIES Diamond Blade application shot
